'Galaxy McManis' Elevation

  • Sale
  • Regular price $20,880.00


Table price is a base price and doesn't include GST or freight costs. Design a table that meets your needs and vision. See our list of table options here.

Contact us for a free quote including freight pricing and delivery information.



Unequalled versatility in an all-purpose flexion table.

Manual flexion and pelvic extension and retraction are standard. Other standard features include: electronic height selector, and programmable automatic flexion. Optional features include: rotating chest, rotating pelvic, manual & automatic cocking drops on all sections including the ankle!

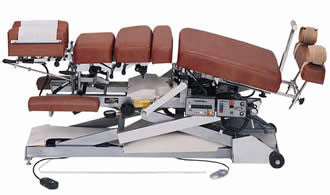

Galaxy McManis Elevation
Fully Extended 228.6 cms long x 55.9 cms wide
Fully Retracted 162.6 cms long x 55.9 cms wide
Fully Raised Height      61.0 cms or 101.6 cms
Fully Lowered Height        55.9 cms or 96.6 cms
Shipping Weight 195.1 kgs. (approx)
Actual Weight 172.4 kgs. (approx)



Lloyd's drop design allows the amount of force applied to be equal, whether that force is applied on the right, left or center of the pelvic cushion, making them superior to other drops on the market.

The automatic cocking drops are built into the table with controls on each side and can be set manually in the event of electric failure. No air compressor is required.

A specially designed spring release on drop chest and lumbar and flexion T-BAR that retracts downward or sideways are optional.

Optional manual and automatic drops are available on an optional rotating chest lumbar section.

Standard Features

  • Hydraulically controlled Elevation
  • Electronic Height Select
  • Deluxe / Adjustable Headpiece
  • One piece adjustable chest
  • Chest & Pelvic Separation
  • Extension / Retraction of Length
  • Automatic, semi-automatic and manual flexion distraction
  • Adjustable Ankle Rest (Vertical and Horizontal)
  • Powered axial distraction
  • Lateral bending
  • Ankle Straps

 Optional Features:

  • Lloyd's superior designed auto and manual cocking drops
  • Manual & Automatic drop Ankle
  • Pelvic rotation
  • Total Dimension Flexion Headpiece
  • Grab Bar
  • Rotating chest lumbar with breakaway
  • Retractable flexion T-BAR
  • Angled T-BAR
  • Span-on covers



    Other Features of the McManis Elevation

    Optional Total Dimension Flexion Headpiece  Range of motion and position of patient's head is virtually limitless.

    Total Dimension Flexion Headpiece

    An optional headpiece available on many of Lloyd's tables.
    Its standard features are:

    Tilt
    Elevated
    Forward Motion & Straight (Toggle) Drops
    Flexion/Distraction
    Lateral Bending
    Rotation
    Supine & Prone Axial Traction
    Flex Assist Handle & Harness



    Lloyd-galaxy-ultimate-Programmable-Variable-Flexion

    Programmable Variable Flexion
    with automatic counter displays flexions in progress from 1 to 99 in visual readout.

    Lloyd-galaxy-ultimate-Programmable-Variable-Flexion

    Electronic Height Selector
    Standard on the Ultimate. You can pre-select heights from 55.9 cms to 96.6 cms.

    • Angled T-BAR
    • Span-on covers

    Colour and Fabrics for Chiropractic table
